Sentinel-5P任务旨在在 2017 年至至少 2023 年之间提供有关空气质量和气候的信息和服务。通过机载 TROPOMI 传感器，它每天对主要大气成分进行全球观测，包括臭氧、二氧化氮、二氧化硫、一氧化碳、甲烷、甲醛以及云和气溶胶特性。该任务旨在确保 Envisat 卫星退役和 NASA 的 Aura 任务与 Sentinel-5 发射之间的数据连续性
数据
上一篇是介绍怎么使用程序下载sentinel5p数据，这篇是讲怎么对其进行可视化。因为下载的是L2级数据了，无需再进行预处理。
数据范围是覆盖大陆陆地区域，这里仅作为展示使用。时间是2021年6月（这个代码就是那时候写的）
第三方库
from scipy.interpolate import griddata #插值
from netCDF4 import Dataset #读取nc文件
import numpy as np
from matplotlib.colors import LogNorm #画图
import matplotlib.pyplot as plt #画图
from mpl_toolkits.basemap import Basemap #画图解决No module named ‘mpl_toolkits.basemap’问题：

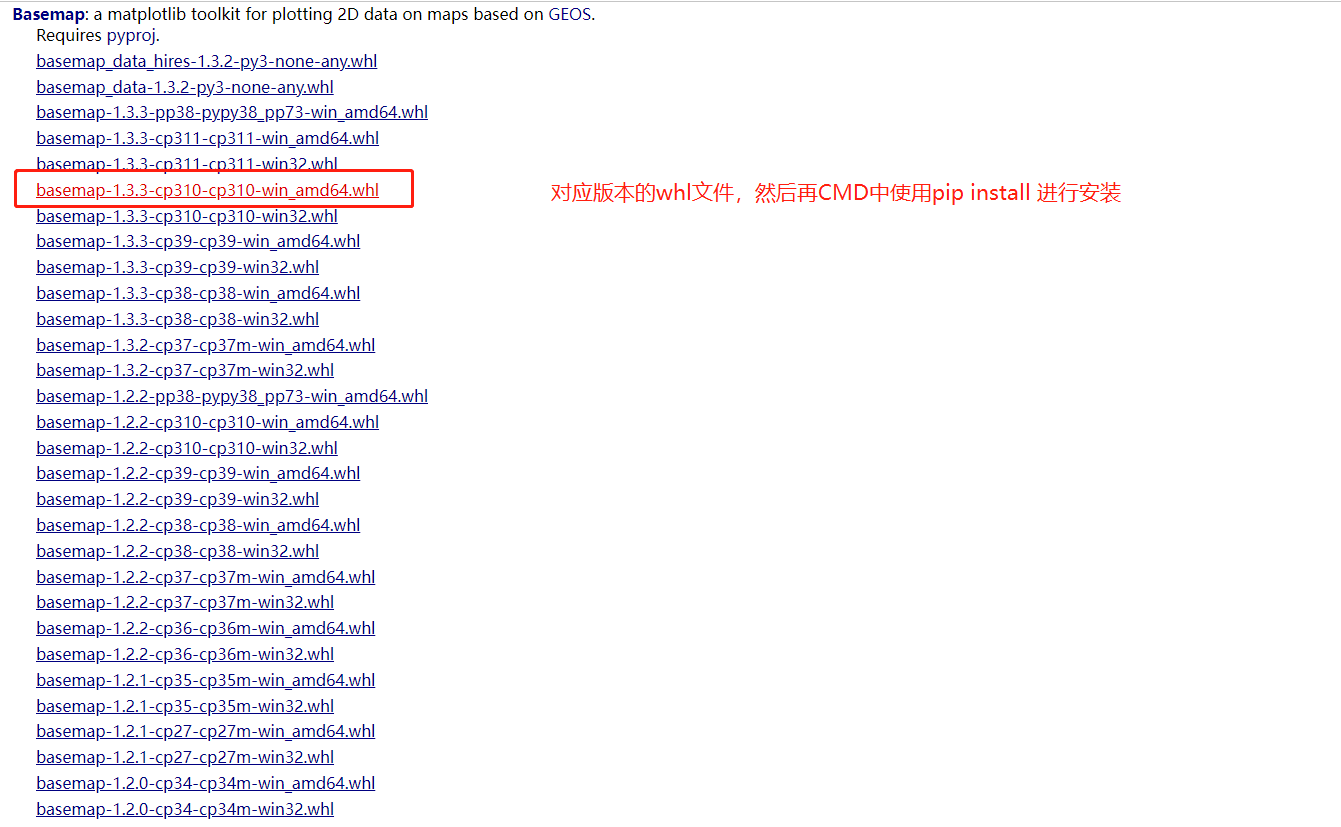

进入https://www.lfd.uci.edu/~gohlke/pythonlibs/#basemap ctrl + F 搜索 basemap，下载
可能存在的bug，及修复方法：
原因：本地缺少中国区域的矢量shp文件。
修复：下载中国区域shp到本地：https://github.com/dongli/china-shapefiles
解压文件后，把shp文件地址重新修改到basemap_show函数中的 m.readshapefile(“E:\china-shapefiles-master\shapefiles\china”, ‘china’, drawbounds=True)
Demo

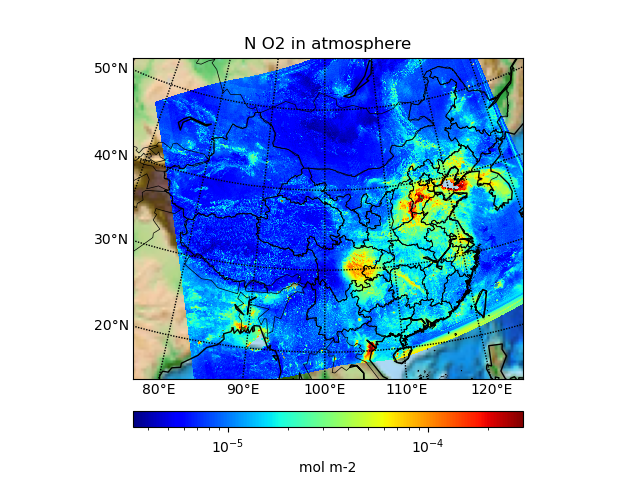

Sentinel-5P可视化展示空气污染程度DEMO如下：
# -*- coding: utf-8 -*-
# @Time : 2021/6/7 16:01
from scipy.interpolate import griddata
from netCDF4 import Dataset
import numpy as np
from matplotlib.colors import LogNorm
import matplotlib.pyplot as plt
from mpl_toolkits.basemap import Basemap
# Array rotation
def flip90_left(arr):
new_arr = np.transpose(arr)
new_arr = new_arr[::-1]
return new_arr
# Output three columns of data, followed by longitude, latitude, no2
def Arranged_In_Three_Columns(data1, data2, data3):
# 降维
d1 = data1.flatten()
d2 = data2.flatten()
d3 = data3.flatten()
# Converted to column form
dd1 = d1[:, np.newaxis]
dd2 = d2[:, np.newaxis]
dd3 = d3[:, np.newaxis]
data4 = np.c_[dd1, dd2, dd3]
# Remove the rows where nan exists, and filter the data
data5 = np.delete(data4, np.where(np.isnan(data4))[0], axis=0)
return data5
def data(file):
fh = Dataset(file, mode='r')
lon = fh.groups['PRODUCT'].variables['longitude'][:][0, :, :]
lat = fh.groups['PRODUCT'].variables['latitude'][:][0, :, :]
no2 = fh.groups['PRODUCT'].variables['nitrogendioxide_tropospheric_column_precision'][0, :, :]
no2_units = fh.groups['PRODUCT'].variables['nitrogendioxide_tropospheric_column_precision'].units
# lon = np.array(lon)
# lat = np.array(lat)
# no2 = np.array(no2)
return lon, lat, no2, no2_units
def merge_data(list_file):
# a = np.zeros()
lon = []
lat = []
no2 = []
three_data_lon_lat_no2 = []
for file in list_file:
a1, b1, c1, no2_units = data(file)
d1 = Arranged_In_Three_Columns(a1, b1, c1)
d1 = np.array(d1)
lon.append(a1)
lat.append(b1)
no2.append(c1)
three_data_lon_lat_no2.append(d1)
return lon, lat, no2, three_data_lon_lat_no2, no2_units
def min_max_lon_lat(lon, lat, three_data_lon_lat_no2):
n = len(lon)
min_lon_list = []
max_lon_list = []
min_lat_list = []
max_lat_list = []
three_data_lon_lat_no2_list = []
for i in range(len(lon)):
min_lon_single = np.min(lon[i])
max_lon_single = np.max(lon[i])
min_lat_single = np.min(lat[i])
max_lat_single = np.max(lat[i])
min_lon_list.append(min_lon_single)
max_lon_list.append(max_lon_single )
min_lat_list.append(min_lat_single)
max_lat_list.append(max_lat_single)
min_lon = np.min([min_lon_list])
max_lon = np.max([max_lon_list])
min_lat = np.min([min_lat_list])
max_lat = np.max([max_lat_list])
# 0615 There are currently only 4 files, and it may increase to five in the future (adding Nanhai)
total_three_data_lon_lat_no2 = np.r_[three_data_lon_lat_no2[0],three_data_lon_lat_no2[1],three_data_lon_lat_no2[2],three_data_lon_lat_no2[3]]
return min_lon, max_lon, min_lat, max_lat, total_three_data_lon_lat_no2
def linear_process(list_file):
lon, lat, no2, three, no2_units = merge_data(list_file)
min_lon, max_lon, min_lat, max_lat, total_three_data_lon_lat_no2 = min_max_lon_lat(lon, lat, three)
lat = np.linspace(min_lat, max_lat, 2000)
lon = np.linspace(min_lon, max_lon, 2000)
[lat1, lon1] = np.meshgrid(lat, lon)
inter_mat = griddata(total_three_data_lon_lat_no2[:, 0:2], total_three_data_lon_lat_no2[:, 2] * 1000000, (lon1, lat1), method='linear')
inter_mat = np.where(inter_mat > 300, np.nan, inter_mat/1000000)
basemap_show(lon1, lat1, inter_mat, no2_units)
def basemap_show(lon1,lat1,data, no2_units):
m = Basemap(llcrnrlon=77, llcrnrlat=14, urcrnrlon=140, urcrnrlat=51, projection='lcc', lat_1=33, lat_2=45,
lon_0=100)
m.readshapefile(".\shapefiles\china", 'china', drawbounds=True) # 这里可能需要修改
xi, yi = m(lon1, lat1)
# Plot Data
cs1 = m.pcolor(xi, yi, np.squeeze(data), norm=LogNorm(), cmap='jet', shading='auto')
# m.pcolor(x2, y2, np.squeeze(c2), norm=LogNorm(), cmap='jet')
# m.pcolor(x3,y3,np.squeeze(c3),norm=LogNorm(), cmap='jet')
# m.pcolor(x4, y4, np.squeeze(c4),norm=LogNorm(), cmap='jet')
# Add Grid Lines
m.drawparallels(np.arange(-80., 81., 10.), labels=[1, 0, 0, 0], fontsize=10)
m.drawmeridians(np.arange(-180., 181., 10.), labels=[0, 0, 0, 1], fontsize=10)
# Add Coastlines, States, and Country Boundaries
m.drawcoastlines()
m.drawstates()
m.drawcountries()
m.etopo(scale=0.2)
# Add Colorbar
cbar = m.colorbar(cs1, location='bottom', pad="10%")
cbar.set_label(no2_units)
# Add Title
plt.title('N O2 in atmosphere')
plt.savefig('2.png')
plt.show()
if __name__ == '__main__':
my_example_nc_file1 = r'.\data\S5P_NRTI_L2__NO2____20210607T065201_20210607T065701_18910_01_010400_20210607T073747.nc'
my_example_nc_file2 = r'.\data\S5P_NRTI_L2__NO2____20210607T065701_20210607T070201_18910_01_010400_20210607T073816.nc'
my_example_nc_file3 = r'.\data\S5P_NRTI_L2__NO2____20210607T051201_20210607T051701_18909_01_010400_20210607T055650.nc'
my_example_nc_file4 = r'.\data\S5P_NRTI_L2__NO2____20210607T051701_20210607T052201_18909_01_010400_20210607T055916.nc'
list_file = [my_example_nc_file1,my_example_nc_file2, my_example_nc_file3, my_example_nc_file4]
linear_process(list_file)
a = 0
小结
测试数据、shp文件、代码一起打包了在百度网盘，下载地址是，公众号回复：Sentinel5P
