遥感影像分块处理的动画展示

在https://editor.p5js.org/ 展示

代码如下：

let img; // 用于存储图像对象
let originalImgWidth, originalImgHeight; // 存储图像原始尺寸
let displayWidth = 800; // 画布最大显示宽度
let displayHeight = 600; // 画布最大显示高度
let scaledWidth, scaledHeight; // 图像在画布上的缩放后尺寸
let scaleFactor; // 缩放比例
let tileSize = 64; // 图块尺寸改小一点，动画效果更明显

// --- 图像URL (保持不变或替换) ---
let imageUrl = 'https://cdn.jsdelivr.net/gh/ytkz11/picture/imgs202504181019899.png';

// --- 动画状态变量 ---
let currentCol = 0;
let currentRow = 0;
let totalCols;
let totalRows;
let isAnimationComplete = false;
let animationSpeed = 1; // 画多少个块每一帧, 越大越快

function preload() {
  img = loadImage(imageUrl);
}

function setup() {
  originalImgWidth = img.width;
  originalImgHeight = img.height;

  // --- 计算缩放 (同前) ---
  let scaleX = displayWidth / originalImgWidth;
  let scaleY = displayHeight / originalImgHeight;
  scaleFactor = min(scaleX, scaleY);
  // scaleFactor = min(scaleFactor, 1.0); // Optional: prevent upscaling
  scaledWidth = originalImgWidth * scaleFactor;
  scaledHeight = originalImgHeight * scaleFactor;

  createCanvas(scaledWidth, scaledHeight);

  // --- 计算总行列数 ---
  totalCols = ceil(originalImgWidth / tileSize);
  totalRows = ceil(originalImgHeight / tileSize);

  // --- 初始化/重置动画状态 ---
  resetAnimation();

  // --- 设置帧率控制动画速度 ---
  // frameRate(10); // 例如，每秒大约前进10个图块 (如果 animationSpeed = 1)
  // frameRate(60); // 默认值，动画会很快

  print(`原始图像尺寸: ${originalImgWidth} x ${originalImgHeight}`);
  print(`画布显示尺寸: ${round(scaledWidth)} x ${round(scaledHeight)}`);
  print(`原始图块尺寸: ${tileSize} x ${tileSize} 像素`);
  print(`图块数量 (列 x 行): ${totalCols} x ${totalRows}`);
  print("Click mouse to restart animation.");
}

function draw() {
  // ---- 1. 绘制缩放后的底图 (每帧都画) ----
  image(img, 0, 0, scaledWidth, scaledHeight);

  // ---- 2. 绘制已处理的图块 ----
  stroke(255, 0, 0, 180); // 网格线颜色
  strokeWeight(1);
  noFill();

  // 遍历所有可能的图块位置
  for (let r = 0; r < totalRows; r++) {
    for (let c = 0; c < totalCols; c++) {
      // 检查此图块是否应该根据动画进度被绘制
      if (r < currentRow || (r === currentRow && c < currentCol) || isAnimationComplete) {
        // 计算绘制坐标和尺寸 (同前)
        let x = c * tileSize;
        let y = r * tileSize;
        let drawX = x * scaleFactor;
        let drawY = y * scaleFactor;
        let drawW = min(tileSize * scaleFactor, scaledWidth - drawX);
        let drawH = min(tileSize * scaleFactor, scaledHeight - drawY);

        // 绘制图块边框
        rect(drawX, drawY, drawW, drawH);
      }
    }
  }

  // ---- 3. 更新动画状态 (如果未完成) ----
  if (!isAnimationComplete) {
      for (let i = 0; i < animationSpeed; i++) { // Allow processing multiple tiles per frame
          if (isAnimationComplete) break; // Stop if completed within this loop

          currentCol++; // 前进到下一列
          if (currentCol >= totalCols) {
              // 如果列到达末尾，重置列并前进到下一行
              currentCol = 0;
              currentRow++;

              // 如果行也到达末尾，动画完成
              if (currentRow >= totalRows) {
                  isAnimationComplete = true;
                  print("Animation Complete!");
                  // break; // Exit speed loop once animation is complete
              }
          }
      }
  }


  // ---- 4. 高亮显示鼠标悬停的图块 (始终有效) ----
  if (mouseX > 0 && mouseX < width && mouseY > 0 && mouseY < height) {
    let originalMouseX = mouseX / scaleFactor;
    let originalMouseY = mouseY / scaleFactor;
    let tileCol = floor(originalMouseX / tileSize);
    let tileRow = floor(originalMouseY / tileSize);

    // 确保行列在有效范围内
    if (tileCol >= 0 && tileCol < totalCols && tileRow >= 0 && tileRow < totalRows) {
        let tileOrigX = tileCol * tileSize;
        let tileOrigY = tileRow * tileSize;
        let highlightX = tileOrigX * scaleFactor;
        let highlightY = tileOrigY * scaleFactor;
        let highlightW = min(tileSize * scaleFactor, scaledWidth - highlightX);
        let highlightH = min(tileSize * scaleFactor, scaledHeight - highlightY);

        stroke(0, 255, 0); // 亮绿色高亮
        strokeWeight(3);
        noFill();
        rect(highlightX, highlightY, highlightW, highlightH);
    }
  }
}

// --- 重置动画的函数 ---
function resetAnimation() {
  currentCol = 0;
  currentRow = 0;
  isAnimationComplete = false;
  print("Animation Reset.");
}

// --- 鼠标点击时重置动画 ---
function mousePressed() {
    // Check if mouse is inside the canvas before resetting
    if (mouseX > 0 && mouseX < width && mouseY > 0 && mouseY < height) {
        resetAnimation();
    }
}

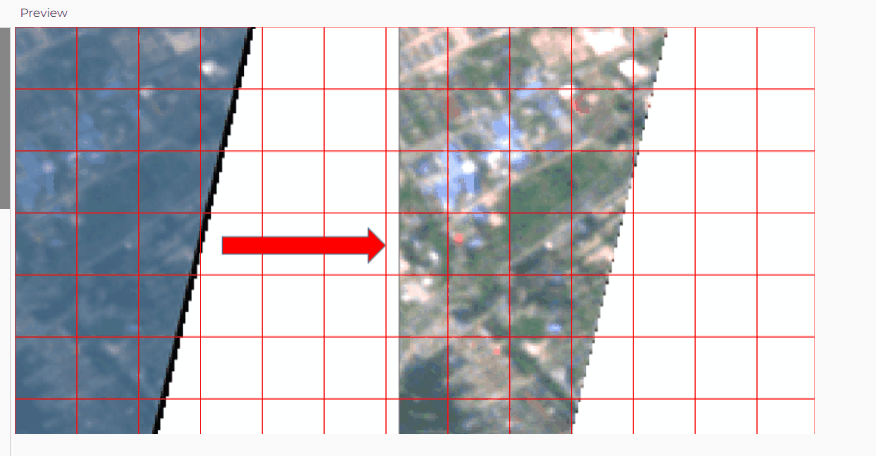

展示效果如下：
